东莞某供应链仓库过滤冷风机(SS-EAC系列)通风降温工程项目

【项目背景：高温与洁净的双重挑战】

本项目位于广东东莞。东莞地处亚热带季风气候区，夏季漫长且高温高湿，年均气温超过22℃，对工业生产及仓储环境的温湿度控制提出了严峻考验。作为“世界工厂”的核心城市，东莞的供应链产业高度发达，是华南地区乃至全国的重要物流枢纽，仓储周转效率直接关系到产业链的稳定运行。

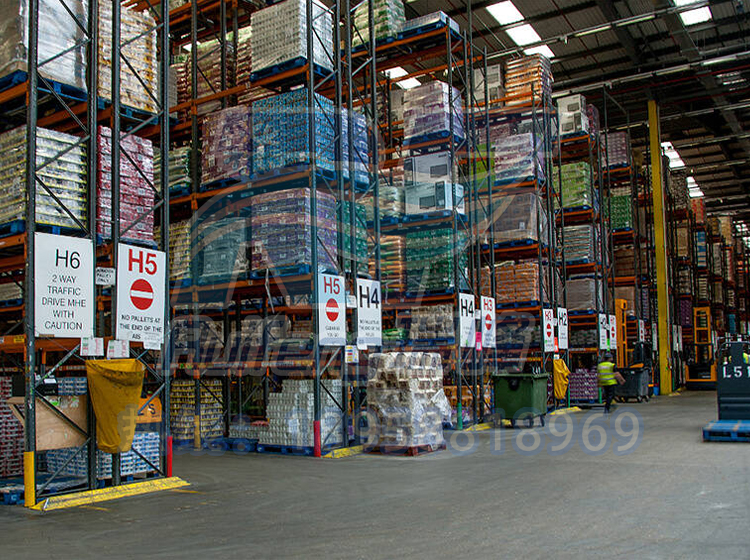

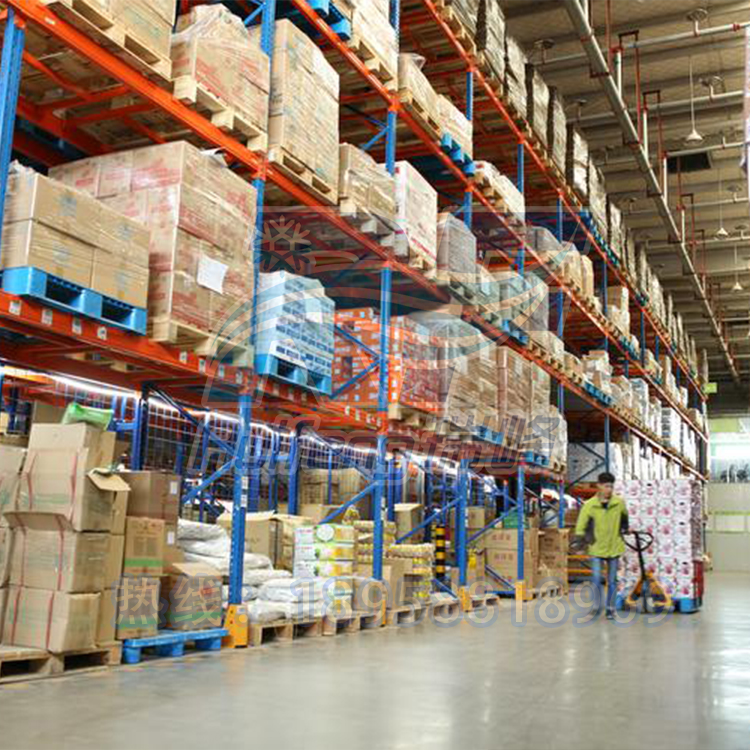

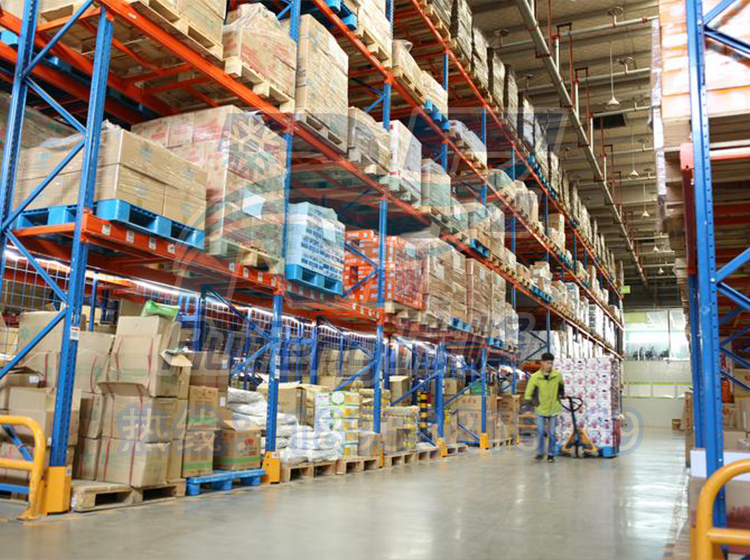

该仓库作为区域内关键的供应链节点，主要承担食品、药品及部分轻工产品的周转任务。食品与药品对存储环境极为敏感：高温易导致食品变质、药品性状改变，而空气中的粉尘、微生物则可能造成交叉污染，影响产品质量与安全。加之该仓库面积巨大、层高较高，属于典型的高大空间建筑，自然通风难以满足需求，存在明显的“上热下闷”现象，亟需一套高效、洁净的通风降温解决方案。

【瑞峰方案：定制化“洁净+降温”一体化设计】

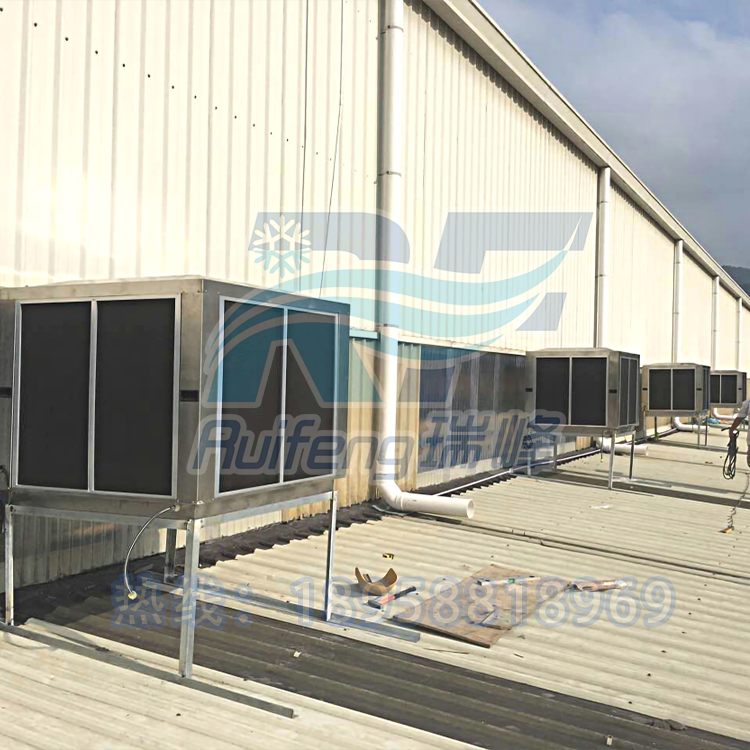

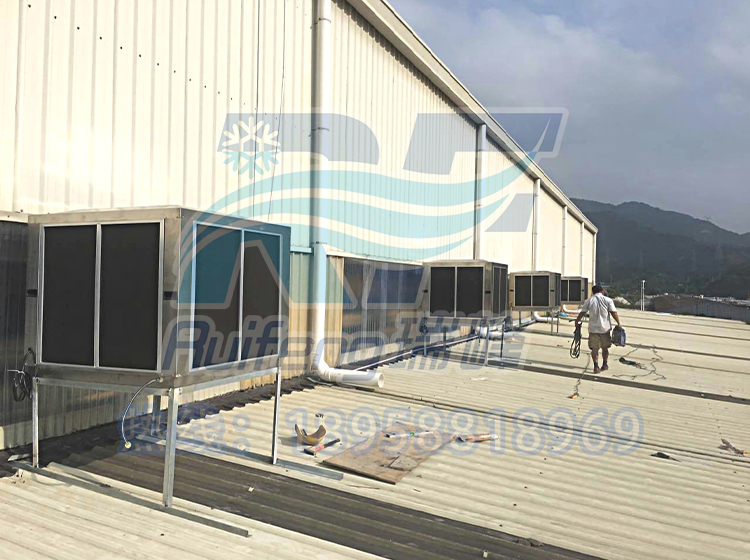

针对该项目的特殊需求，瑞峰环保制冷的方案设计人员综合考量了东莞高温高湿的地理气候、高大空间的空气流动特性，以及食品、药品对洁净度的高要求，摒弃了传统单一功能的降温设备，量身定制了一套大功率不锈钢过滤冷风机(SS-EAC系列) + 大型不锈钢风管的系统布局。

该方案的核心设计逻辑如下：

1、一机两用，功能融合

所选用的SS-EAC系列不锈钢过滤冷风机，核心优势在于将“空气过滤”与“环境降温”合二为一。设备运行时，室外空气首先经过多层过滤系统，被净化至高标准洁净度；随后通过高效湿帘进行蒸发式降温，利用水蒸发吸热的物理原理，将空气温度有效降低；最后，由高效电机与风叶动力系统将处理后的洁净冷空气送入环境。根据现场实测，该设备出风口温度最低可稳定在27-28℃，相比室外高温环境，实现了显著的降温效果。

2、四重过滤，层层净化

为实现食品、药品仓库对空气洁净度的严苛要求，设备配备了四重过滤系统：

1）防护过滤网：作为第一道屏障，有效拦阻沙石、枯枝、飞絮、垃圾碎屑等大颗粒杂物，保护后续滤网及设备内部核心部件。

2）初效过滤器：作为预过滤层级，主要针对直径≥5μm的较大颗粒物进行拦截，如金属碎屑、木屑、灰尘、毛絮及蚊虫等，延长中高效滤网使用寿命。

3）中效过滤层：这是市场中较少采用的深度过滤层级，专注于过滤1-5μm的细小颗粒物，为下一级高效过滤提供更洁净的空气基础，确保整体过滤效率。

4）高效过滤层：作为终极净化层级，针对亚微米级颗粒物（≤0.3μm）进行高效吸附过滤，可有效去除PM2.5、病毒、细菌等有害物质，其过滤标准可达到手术室级别的净化要求，充分保障了食品与药品的存储安全。

3、卓越产品力，皮实耐用

1）坚固耐用：整机采用不锈钢机身，具备优异的耐腐蚀、耐氧化特性，在仓库复杂的环境中依然“皮实耐造”，使用寿命远超普通设备。

2）高效降温：配备5090型优质湿帘，吸水性与亲水性极佳，降温效率行业领先。四面进风的设计，大幅增加了进风面积与制冷面积，在东莞夏季高温条件下，可实现4-8℃的高效降温。

3）智能控制：提供空气开关、液晶控制器、变频控制器等多种控制系统，可根据仓库实际温湿度变化灵活调节运行状态，实现节能与舒适度的完美平衡。

4）便捷维护：滤层采用插入式工业设计，无需复杂工具即可轻松更换滤芯，极大降低了日常维护成本与时间。

5）高度定制：可根据客户需求，灵活选择304不锈钢、316不锈钢、高锌镀锌板等不同材质，也可定制防爆型、不含铜铁锌等特殊机型，满足各种特殊场景要求。

4、大型风管，均匀送风

本项目采用了大型不锈钢风管作为空气分配系统。其设计巧妙运用了空气动力学原理：通过风管的合理布局与管道尺寸的精确计算，将冷风机产生的大风量、高洁净度的冷空气，以较低的流速、均匀地输送至仓库的各个角落，有效解决了高大空间“冷热不均”的难题，实现了整个库区无死角、温度均匀的通风降温效果。

5、项目价值：环境升级，效益提升

设备启用后，库房环境得到了根本性改善。持续稳定的温湿度控制和洁净的空气，为食品、药品创造了近乎恒温、无菌的存储环境，有效保障了货品品质，大幅降低了因环境因素导致的损耗风险。工作环境的舒适性提升，也直接促进了仓储人员的工作效率，使得整体仓储周转效率提升了约20%，为企业创造了可观的经济效益。

【案例延伸：能力边界不止于此】

本项目虽是供应链仓库场景，但其解决方案的核心价值——针对特殊空间与特殊使用场景的综合选型及方案设计能力，可以完美复刻至更广泛的领域。瑞峰环保制冷凭借对SS-EAC系列不锈钢离心式冷风机系列的深刻理解，以及对“通风降温+不锈钢冷风机产品”高度定制化的技术链路适配能力，能够为无尘车间、大数据中心、沙漠城市、医院、食品厂、养殖行业等不同领域，提供从“场景诊断”到“方案设计”，再到“产品落地”的深度服务。我们始终坚持以“深挖切实需求、落地程度高、产品耐用”为能力检验标准，致力于实现工业、商业、农业全场景的普适覆盖。

Ventilation and cooling project of SS-EAC series filtered air cooler for a supply chain warehouse in Dongguan

【 Project Background: Dual Challenges of High Temperature and Cleanliness 】

This project is located in Dongguan, Guangdong. Dongguan is located in the subtropical monsoon climate zone, with long and high temperature and humidity summers, with an average annual temperature exceeding 22 ℃, which poses a severe challenge to the temperature and humidity control of industrial production and storage environments. As the core city of the "world factory", Dongguan has a highly developed supply chain industry and is an important logistics hub in southern China and even the whole country. The efficiency of warehousing turnover directly affects the stable operation of the industrial chain.

As a key supply chain node in the region, this warehouse mainly undertakes the turnover tasks of food, medicine, and some light industrial products. Food and drugs are extremely sensitive to storage environments: high temperatures can easily cause food spoilage and changes in drug properties, while dust and microorganisms in the air may cause cross contamination, affecting product quality and safety. In addition, the warehouse has a huge area and high floor height, which is a typical high-rise space building. Natural ventilation is difficult to meet the demand, and there is a clear phenomenon of "heat up and stuffiness down". An efficient and clean ventilation and cooling solution is urgently needed.

Ruifeng Solution: Customized "Clean+Cooling" Integrated Design

In response to the special requirements of this project, the design team of Ruifeng Environmental Protection Refrigeration has comprehensively considered the high temperature and humidity geographical climate of Dongguan, the air flow characteristics of tall spaces, and the high cleanliness requirements of food and medicine. They have abandoned traditional single function cooling equipment and customized a system layout of high-power stainless steel filter air coolers (SS-EAC series) and large stainless steel ducts.

The core design logic of this scheme is as follows:

1. One machine dual-use, functional integration

The core advantage of the selected SS-EAC series stainless steel filter air cooler is the integration of "air filtration" and "environmental cooling". When the equipment is running, the outdoor air first passes through a multi-layer filtration system and is purified to a high standard cleanliness; Subsequently, an efficient wet curtain is used for evaporative cooling, utilizing the physical principle of water evaporation to absorb heat, effectively reducing the air temperature; Finally, the processed clean cold air is sent into the environment by an efficient motor and fan blade power system. According to on-site measurements, the lowest temperature at the air outlet of the equipment can be stabilized at 27-28 ℃, achieving a significant cooling effect compared to outdoor high-temperature environments.

2. Quadruple filtration, layer by layer purification

To meet the strict requirements for air cleanliness in food and pharmaceutical warehouses, the equipment is equipped with a quadruple filtration system:

1) Protective filter screen: As the first barrier, it effectively blocks large particles such as sand and stones, dead branches, flying fluff, and garbage debris, protecting subsequent filters and core components inside the equipment.

2) Primary filter: As a pre filtration layer, it mainly intercepts larger particles with a diameter of ≥ 5 μ m, such as metal debris, wood chips, dust, fluff, mosquitoes, etc., to extend the service life of medium and high efficiency filters.

3) Medium efficiency filtration layer: This is a less commonly used deep filtration layer in the market, focusing on filtering small particles of 1-5 μ m, providing a cleaner air foundation for the next level of high-efficiency filtration, ensuring overall filtration efficiency.

4) Efficient filtration layer: As the ultimate purification layer, it efficiently adsorbs and filters submicron particles (≤ 0.3 μ m), effectively removing harmful substances such as PM2.5, viruses, and bacteria. Its filtration standards can meet the purification requirements of operating room level, fully ensuring the storage safety of food and drugs.

3. Excellent product strength, sturdy and durable

1) Durable and sturdy: The whole machine adopts a stainless steel body, which has excellent corrosion and oxidation resistance. It is still "sturdy and durable" in the complex environment of the warehouse, and its service life far exceeds that of ordinary equipment.

2) Efficient cooling: Equipped with 5090 high-quality wet curtains, with excellent water absorption and hydrophilicity, the cooling efficiency is industry-leading. The design of four sided air intake significantly increases the air intake area and cooling area, and can achieve efficient cooling of 4-8 ℃ under high temperature conditions in Dongguan during summer.

3) Intelligent control: Provides various control systems such as air switches, LCD controllers, and variable frequency controllers, which can flexibly adjust the operating status according to the actual temperature and humidity changes in the warehouse, achieving a perfect balance between energy conservation and comfort.

4) Convenient maintenance: The filter layer adopts an insertable industrial design, which allows for easy replacement of the filter element without the need for complex tools, greatly reducing daily maintenance costs and time.

5) Highly customized: Different materials such as 304 stainless steel, 316 stainless steel, and high zinc galvanized sheet can be flexibly selected according to customer needs. Special models such as explosion-proof and copper iron zinc free can also be customized to meet various special scenario requirements.

4. Large air duct, uniform air supply

This project uses large stainless steel ducts as the air distribution system. Its design cleverly utilizes the principles of aerodynamics: through the reasonable layout of air ducts and precise calculation of pipe sizes, the large air volume and high cleanliness cold air generated by the air cooler are evenly transported to every corner of the warehouse at a lower flow rate, effectively solving the problem of "uneven heating and cooling" in tall spaces and achieving ventilation and cooling effects with no dead corners and uniform temperature throughout the entire warehouse area.

5. Project Value: Environmental Upgrade, Benefit Enhancement

After the equipment was put into use, the warehouse environment was fundamentally improved. Continuous and stable temperature and humidity control, as well as clean air, create a nearly constant temperature and sterile storage environment for food and medicine, effectively ensuring product quality and significantly reducing the risk of loss caused by environmental factors. The improvement of working environment comfort has directly promoted the work efficiency of warehouse personnel, resulting in an overall increase of about 20% in warehouse turnover efficiency and creating considerable economic benefits for the enterprise.

Case extension: The boundary of ability is not limited to this

Although this project is a supply chain warehouse scenario, the core value of its solution - comprehensive selection and solution design capabilities for special spaces and usage scenarios - can be perfectly replicated in a wider range of fields. Ruifeng Environmental Protection Refrigeration, with a deep understanding of the SS-EAC series stainless steel centrifugal air cooler series and highly customized technical chain adaptation capabilities for "ventilation and cooling+stainless steel air cooler products", can provide in-depth services from "scene diagnosis" to "solution design" and then to "product landing" for different fields such as clean rooms, big data centers, desert cities, hospitals, food factories, and aquaculture industries. We always adhere to the ability testing standards of "deep exploration of practical needs, high degree of implementation, and product durability", and are committed to achieving universal coverage in all industrial, commercial, and agricultural scenarios.
