瑞峰产品中心

工业省电空调

推荐资讯

工业省电空调-立式双轴流柜机

产品型号：SYL-SZL-30

适用面积：200平米

使用范围：各类厂房车间、产品展厅、体育馆、篮球馆、学校食堂、仓储仓库、物流中心、餐厅等工业商业闷热场所。

使用特点：1. 工业蒸发冷省电空调一台可覆盖200平方米空间，冷耗电量5度电/小时，仅为传统空调能耗的1/4。无需外接铜管，成本更低。 2. 每小时16000m³超大风量，送风距离超长，使空气冷却更快，冷却效率更高。

返回列表

产品参数

工业蒸发冷省电空调-立式双轴流柜机
型号Model	SYL-SZL-30	自来水补水水管	DN20
额定电源	380V~50Hz	管道送风距离	12-15M
工业制冷量	30KW	最大风量(m²/h)	16000m³/h
额定电流	11.4A	排/吸气允许工作过压（压力）	2.8MPa/1.5MPa
额定功率	6.5KW	高/低压最大允许压力	2.8MPa/1.5MPa
最大运行电流	12.5A	噪音	65dB(A)
最大运行功率	8KW	制冷剂型号/充注量	R22/3500g
额定回冷却水温度出冷却水温度	32℃/37℃	内机尺寸	8505501890mm
冷却水流量(/h)	6-8	外机尺寸	9309301170mm
冷却水管径	DN25	内机组重量	245KG

产品展示

蒸发冷省电空调-SYW-GD-30

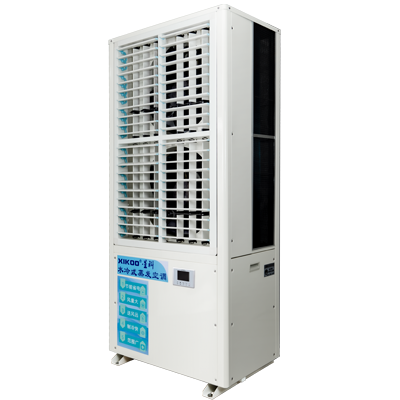

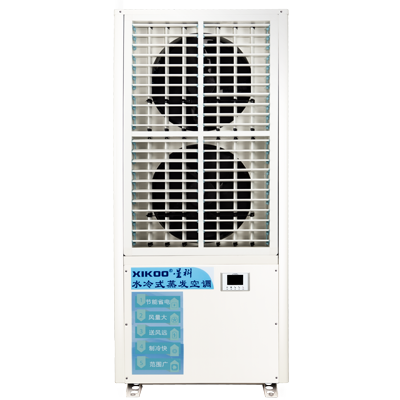

工业蒸发冷省电空调-立式双轴流柜机SYL-SZL-30

内外机组合图

适用场景

工业蒸发冷省电空调-适用多种工业商业场景（部分场景）

注塑厂	制衣厂	食品厂

室内体育馆	物流仓储	饭堂食堂

商场超市	电子厂	高大型维修仓库

瑞峰承接-降温工程项目

支持（免费上门勘察，设计相应降温方案，上门安装，售后维护）一站式服务

应用配件

工业蒸发冷省电空调-主要核心部件

智能控制主板	施耐德电控	斡旋式谷轮压缩机

高效蒸发器	艾默生热力膨胀阀	六头全铜套管

工业蒸发冷省电空调 <工作降温原理

工业蒸发冷省电空调系统通过水冷、风冷、压缩机相结合的工作方式；首先由外机采用湿帘蒸发式冷凝的技术来给循环水降温，水温降至常温后流经内机的热交换系统（此时压缩机已运作，已将冷媒压缩成高温高压状态），从而带走大部分高温冷媒的热量而形成常温冷媒，常温冷媒再经过膨胀阀节流后变成低温低压的冷媒，输送至内机上半部分的蒸发器吹出冷风；已经给高温高压的冷媒降过温的循环水，再由水泵输送至室外机的上部份，同时由风冷的辅助再流经蒸发水帘，从而将高温水变成常温水，再次流经室内机给高温高压下的冷媒降温，不断循环运作将能效比发挥到最大，从而来提高效率。

工业蒸发冷省电空调 <与传统空调降温对比

工业蒸发冷省电空调 <十大核心优势

降温案例

工业蒸发冷省电空调-实拍案例（部分场景）

模具厂	净水设备厂	食品厂

室内体育馆	制衣厂	服装厂

五金厂	饭堂食堂	物流仓储仓库

工厂实力

工业蒸发冷省电空调-研发生产车间实拍

省电空调生产车间	检测室	实验室

省电空调生产车间	省电空调成品仓库	省电空调成品展厅
